Product Description

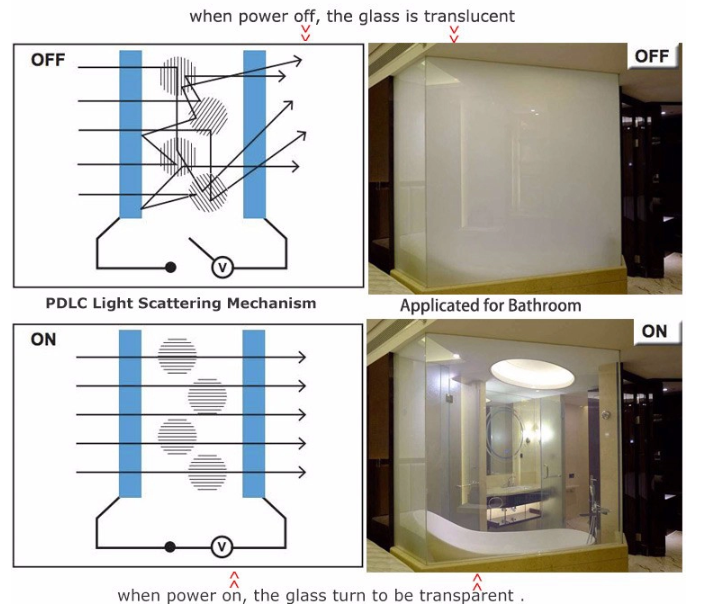

Switchable smart glass, also named as Privacy Glass or Switchable Transparent Glass ( STG ),is an intelligent high function glass, which has a special characteristic of changing between clear and opaque by voltage control.
With such a function, Smart glass meets people’s double requirements of light transmission and protecting privacy.

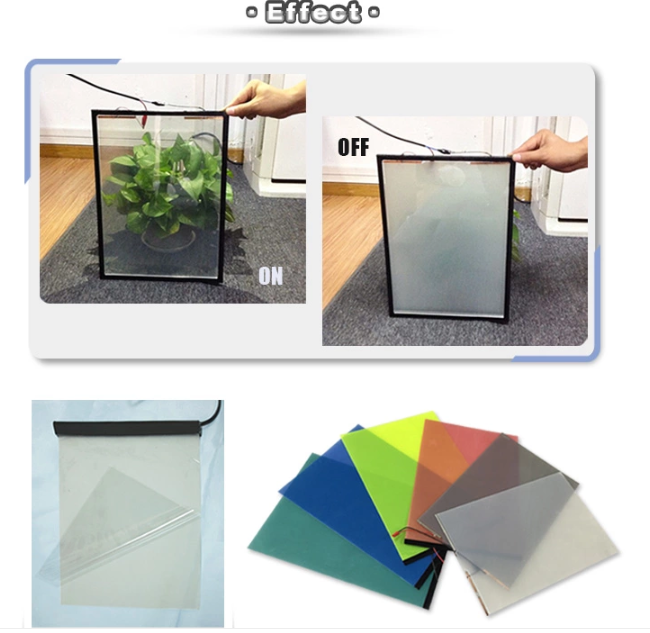

Smart Glass is produced by laminating polymer-dispersed liquid crystal film with architectural grade EVA between two layers of customer-specified glass. The glass can transform from a cloudy-white, translucent barrier to an optically clear state with the flick of a switch.
Applications
1.Operation department,slap-up office/meeting room
2.Special ward / operation room of hospital,monitoring room
3.Classical bathroom / cars,Lorries,luxury yacht
4.Large-scale projection screens
5.Vehicls's window
6.Jewelry shop,museum,insurance counter
7.All kinds of places which need day lighting and privacy
Technical Data

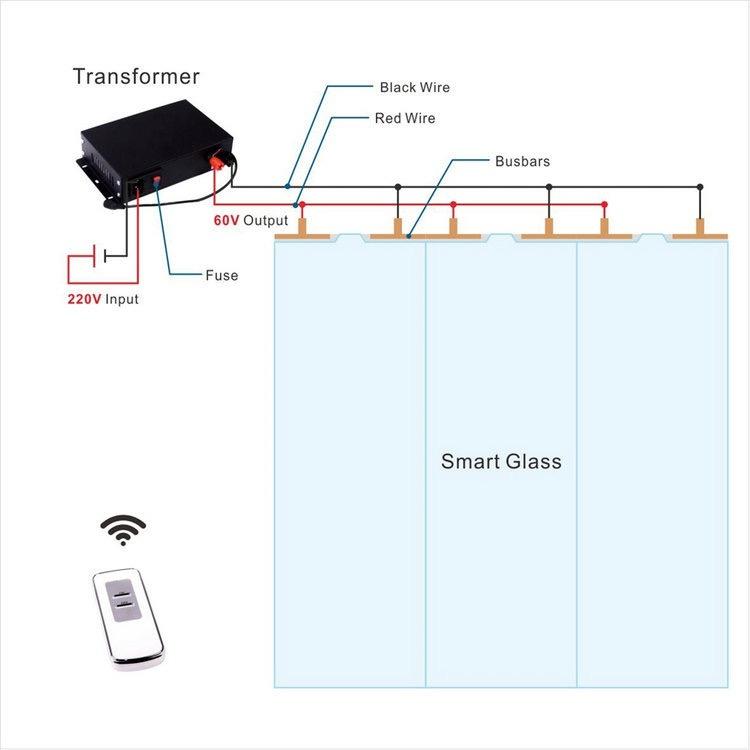

Product Wiring Instruction
1. Use a 2 pin 220V plug from the socket, and then connect its N and L cables to transformer terminal-Power outlet(Input AC 220V), and usa screw to fix it.
2. Use to connect the transformer terminal (output AC 60V) to smart film electric wire and use screw to fix it.
3. Use remote control to power on the smart film (normally just leave it aside)
| Optical Propertoes |
Visible Light Transmission |
ON |
>83% |
| OFF |
<5% |
| Visual Angle |
ON |
150° |
| UV Blocking |
ON/OFF |
>99% |
| Haze |
ON |
5% |
| Electrical Properties |
Operating Voltage |
ON |
60V.AC |
| Frequencies |
ON |
50 to 60Hz |
| Current |
2mA/m2 |
2mA/m2 |
| Response Time |
ON==>OFF |
0.002s |
| OFF==>ON |
0.001s |
| Power Consumption |
ON |
8w/m2/hr |
| Specification |
Durable Temperature |
-20°C to 60°C |
| Life Time |
>100000hours |
| Other |
Color |
White,Gery,Yellow,Blue,Red,Green |
